Simple
- Easy to use, simple to clean, excellent wash results.
- Simple two-button control.
- LCD displays wash & rinse tank temperatures plus wash cycle information.
- Colour coded display.
- Chemical Pump.
Robust
- Three wash programmes - light (2 minutes), standard (3 minutes) and intensive (5 minutes).
- Temperature Interlock guaranteeing correct rinse temperature.
- Doubled-skinned sides and door for quieter operation & reduced heat loss.
- Drain Pump.
- Type AB WRAS compliant.
Classeq
- Made in Britain.
- Next working day delivery available.*
- Supported by a nationwide network of technicians.
D500DUO

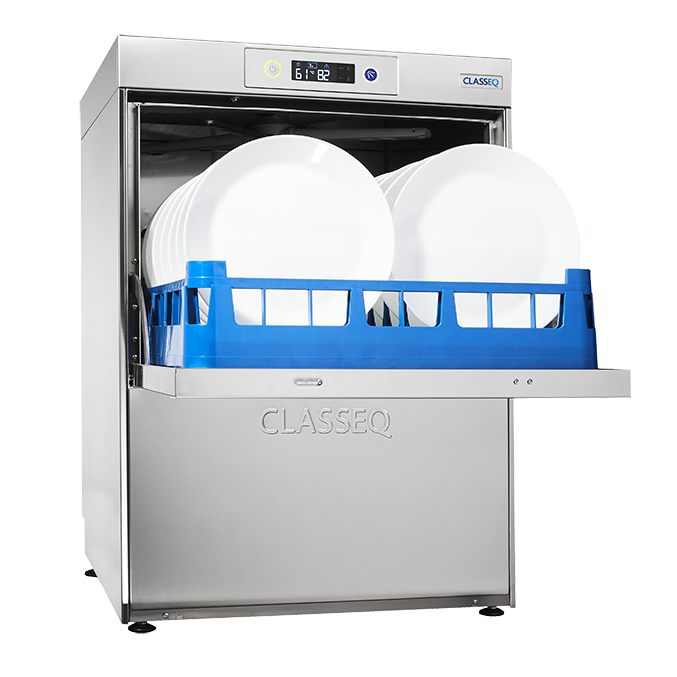

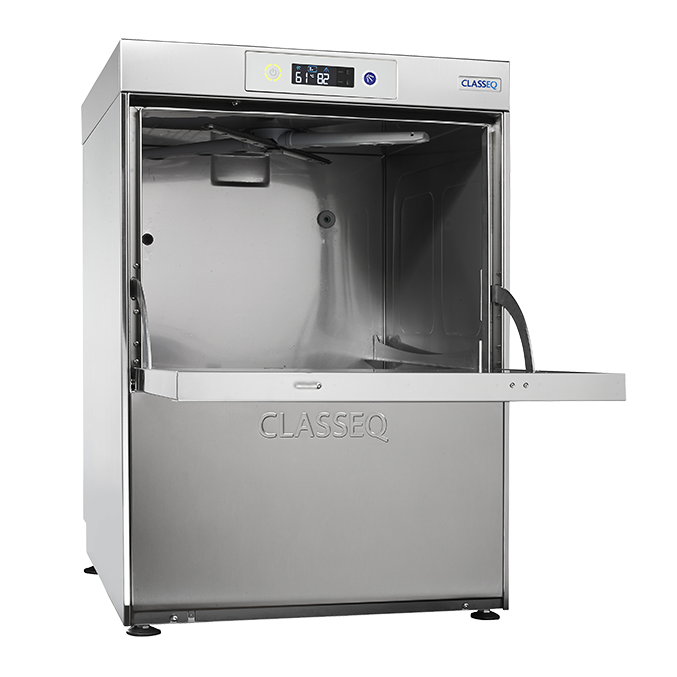

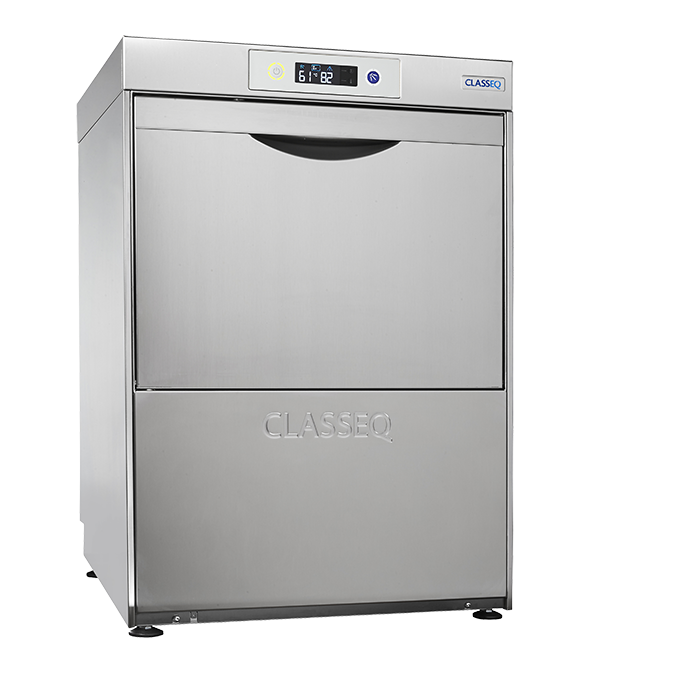

Front-loading commercial dishwasher with a digital display, three wash programs and WRAS compliance for effortless and consistently clean results. The D500DUO is an easy to operate, under counter dishwasher with a 500 x 500mm basket that holds 18 full-sized plates. It features three wash cycles Light (2min), Standard (3min) and intensive (5min) – ensuring that it is optimised for cleaning some of the toughest warewashing requirements.
The Duo range of products all come with drain pumps, rinse booster pumps, built in chemical dispensers and full double skinned construction ensuring they meet all installation regulations and requirements.
All Duo models are also available with an optional water softener – an essential requirement in hard water areas. (D500DUOWS)
Key Features
Dimensions: 570 mm x 830 mm x 605 mm Basket Size: 500 x 500 mmHow to Buy
Complete the form and we will connect you with a reseller.
Product Downloads
Login or Register to download a brochure, manuals or technical documentation.
D500DUO & D500DUOWS - Technical Data at a Glance
A DUO Dishwasher with a 500mm x 500mm basket size. Wash up to 540 plates an hour. Available with integral water softener (DUOWS).
Technical Details - D500DUO & D500DUOWS
Full technical specification of the D500DUO & D500DUOWS. Our glossary can help you understand the technical terms, still confused just complete the contact form and one our team will be in touch.
Dimensions
Width:
570 mm
Height:
830 mm
Depth:
605 mm
Door Depth - Open:
987 mm
Basket Size:
500 x 500 mm
Rack Size:
500 x 500 mm
Clear entry height:
343 mm
Performance
Theoretical max racks per hour:
30
Plates per rack :
18
Number of wash programmes:
3
Duration of wash programmes:
2, 3 & 5 minutes
Plates per hour:
540
Wash tank element:
2 kW
Rinse tank element:
6 kW
Wash tank capacity:
14.33 Litres
Rinse tank capacity:
7.5 Litres
Rinse water consumption at 3 bar:
3 Litres
Wash tank temperature:
55 °C
Rinse tank temperature:
82 °C
Wash pump power:
0.58 kW
Rinse pump power:
0.19 kW
Rinse booster pump:
included
Water softener:
optional
Hydraulic Specifications
Water supply connection:
G3/4" (3/4"Bsp)
Minimum allowed supply water pressure:
0.5 bar (DUO) / 2-4 bar (DUOWS)
Required water flow rate:
11L/min (DUO) // 4L/min (DUOWS)
Minimum incoming water temperature:
4 °C
Maximum incoming water temperature:
55°C
Gravity drain height (from machine base):
40mm
Pumped drain height (from machine base):
600mm
Drain Size:
o40mm
Electrical Specifications
Standard Configuration
Amps Required:
30A (1 phase)
Total connected load:
6.58kW
Optional Configuration
Amps Required:
13A (3 phase)
Total Connected Load:
6.58kW
Optional Configuration
Amps Required:
12A (1 phase)
Total Connected Load:
2.58kW
Additional Info
Empty Weight:
54.7kgs
Packed weight:
66.6kgs (DUO) / 68.7kgs (DUOWS)
Fully loaded weight:
75.2kgs
Service:
Installation
Accessories

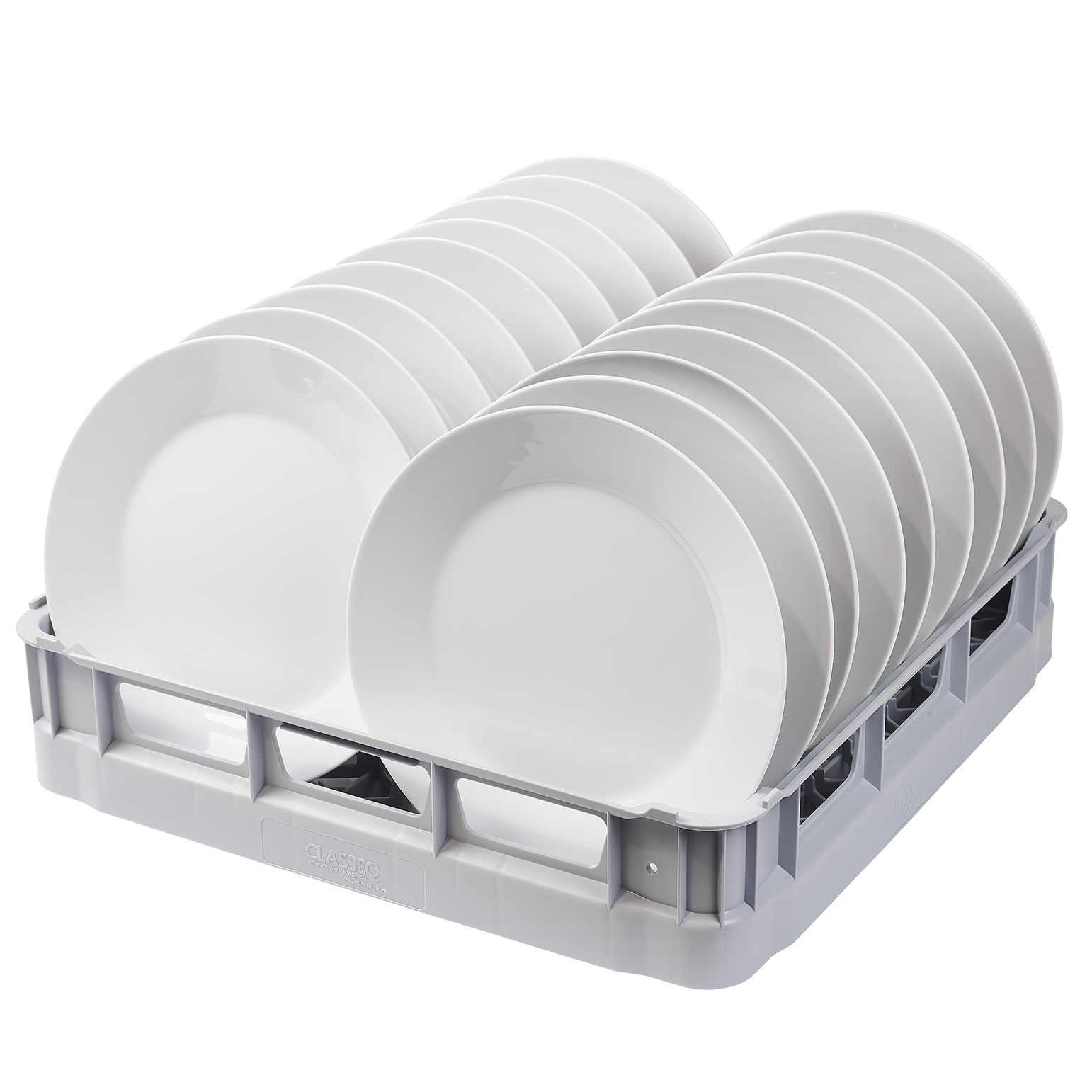

Plate Basket - 500x500mm
30001198

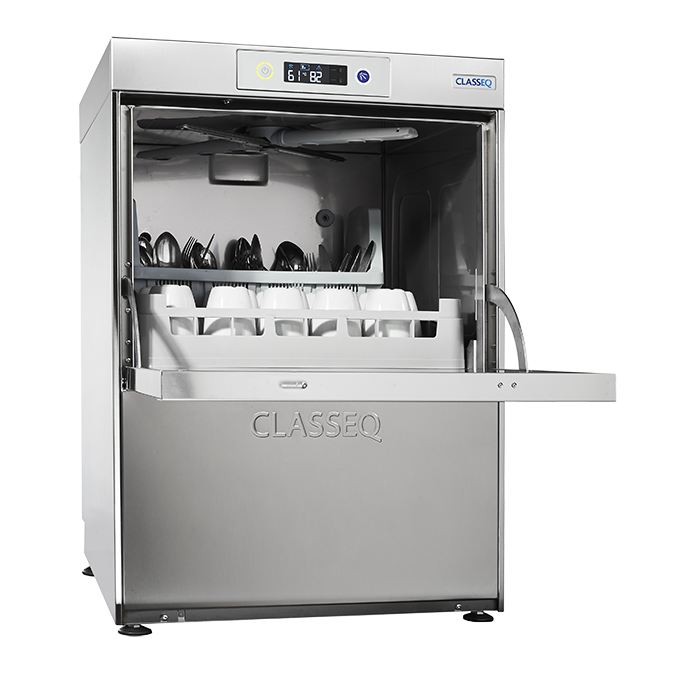

Cutlery Compartment
3602258
500 Stainless Steel Stand
SS500-D
500 Steel Coated Stand
BWS500
16 Litre Manual Softener
WS16-SK
Automatic Softener
WS-AUTO

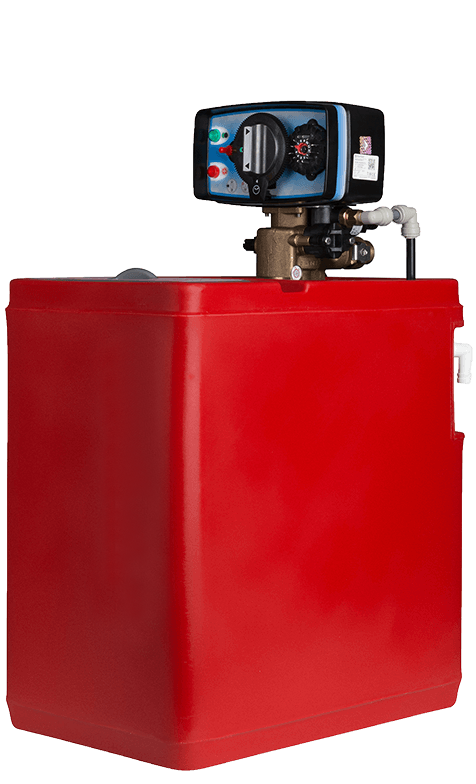

Automatic Softener - Hot
WS-HC10
