Simple
- Easy to use, simple to clean, excellent wash results.
- Simple two-button control.
- LCD displays wash & rinse tank temperatures plus wash cycle information.
- Colour coded display.
- Chemical Pump.
Robust
- Temperature Interlock guaranteeing correct rinse temperature.
- Two wash programmes - standard (2 minutes) & light (1.5 minutes).
- Doubled-skinned door.
- Gravity Drain.
- Optional Drain Pump.
Classeq
- Made in Britain.
- Next working day delivery available.*
- Supported by a nationwide network of technicians.

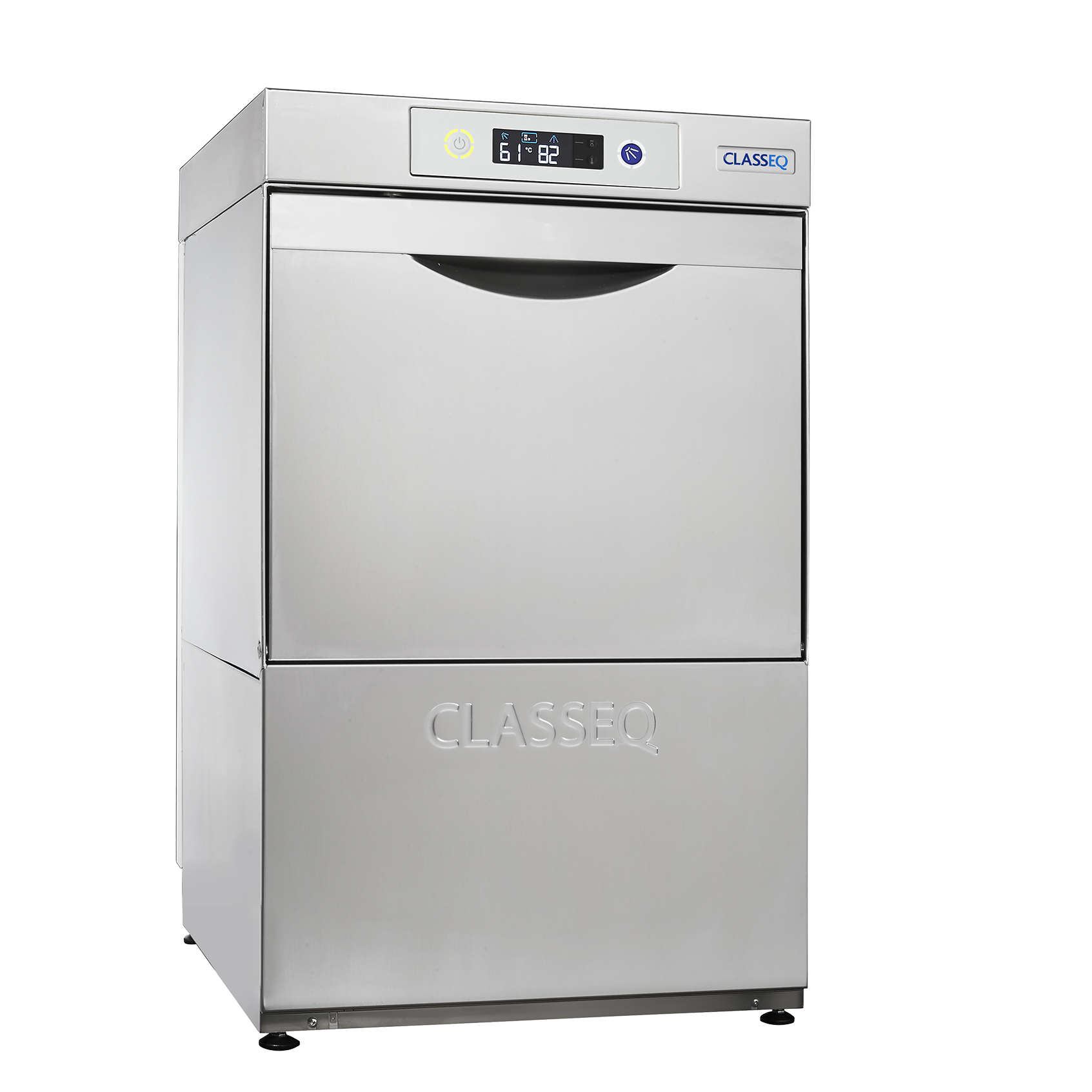

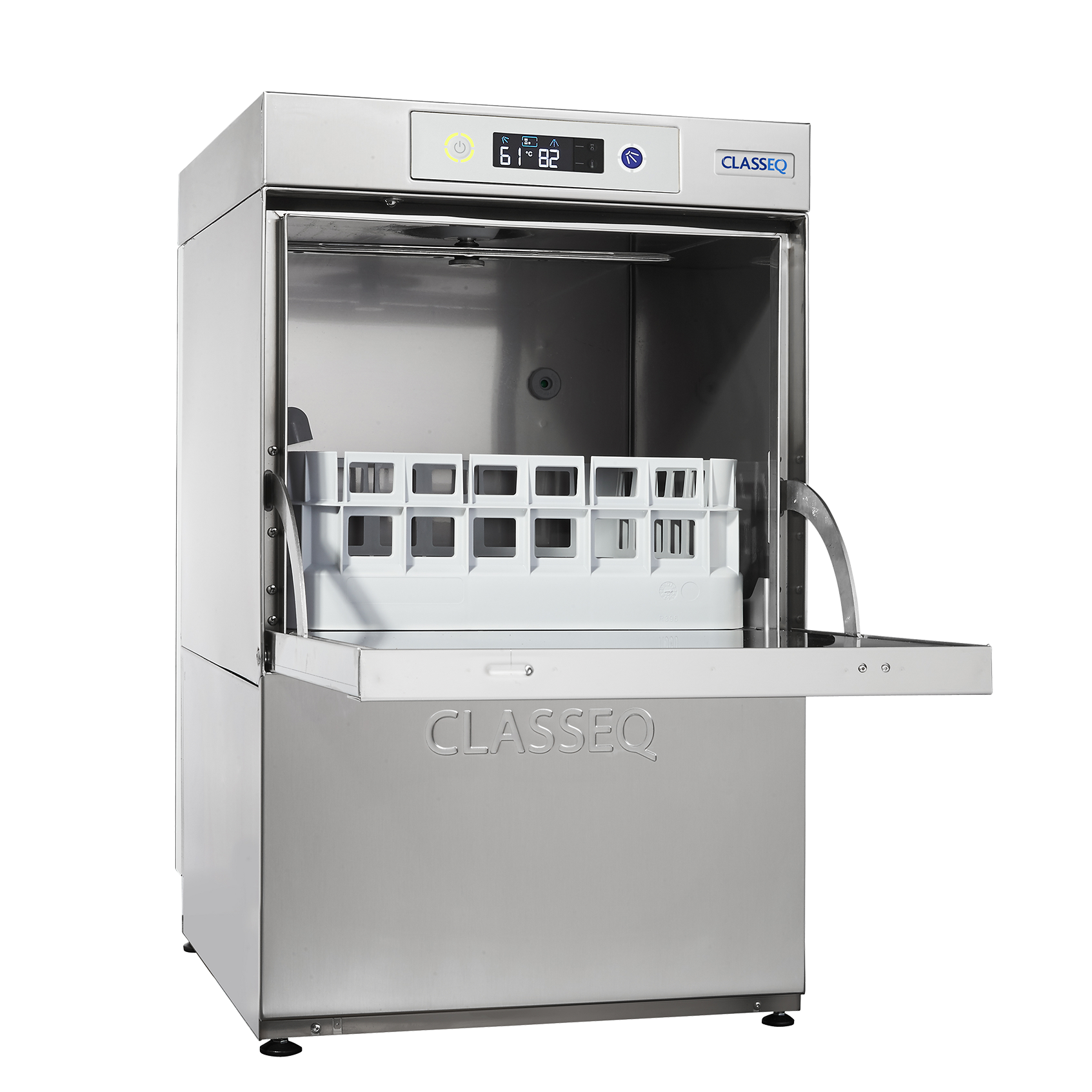

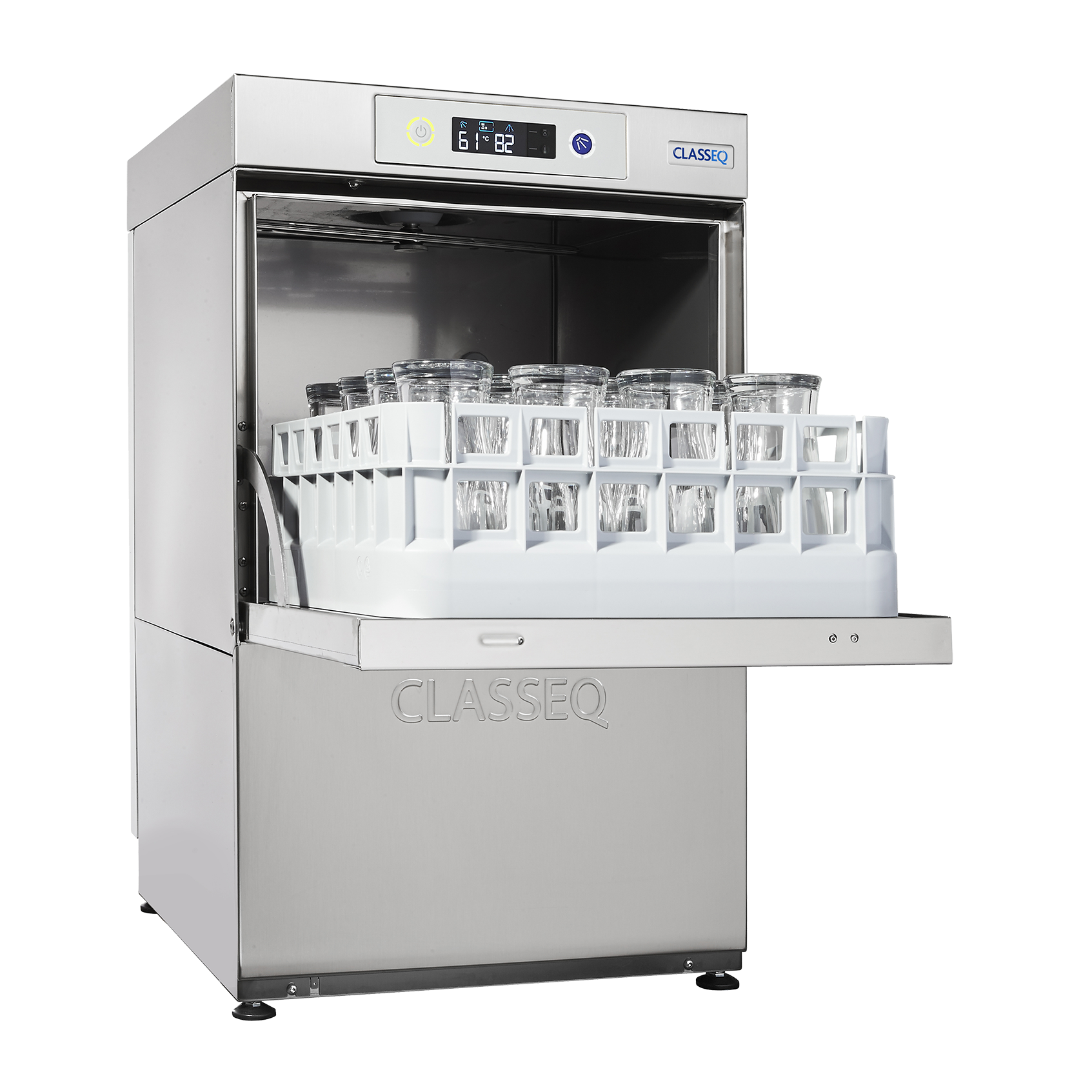

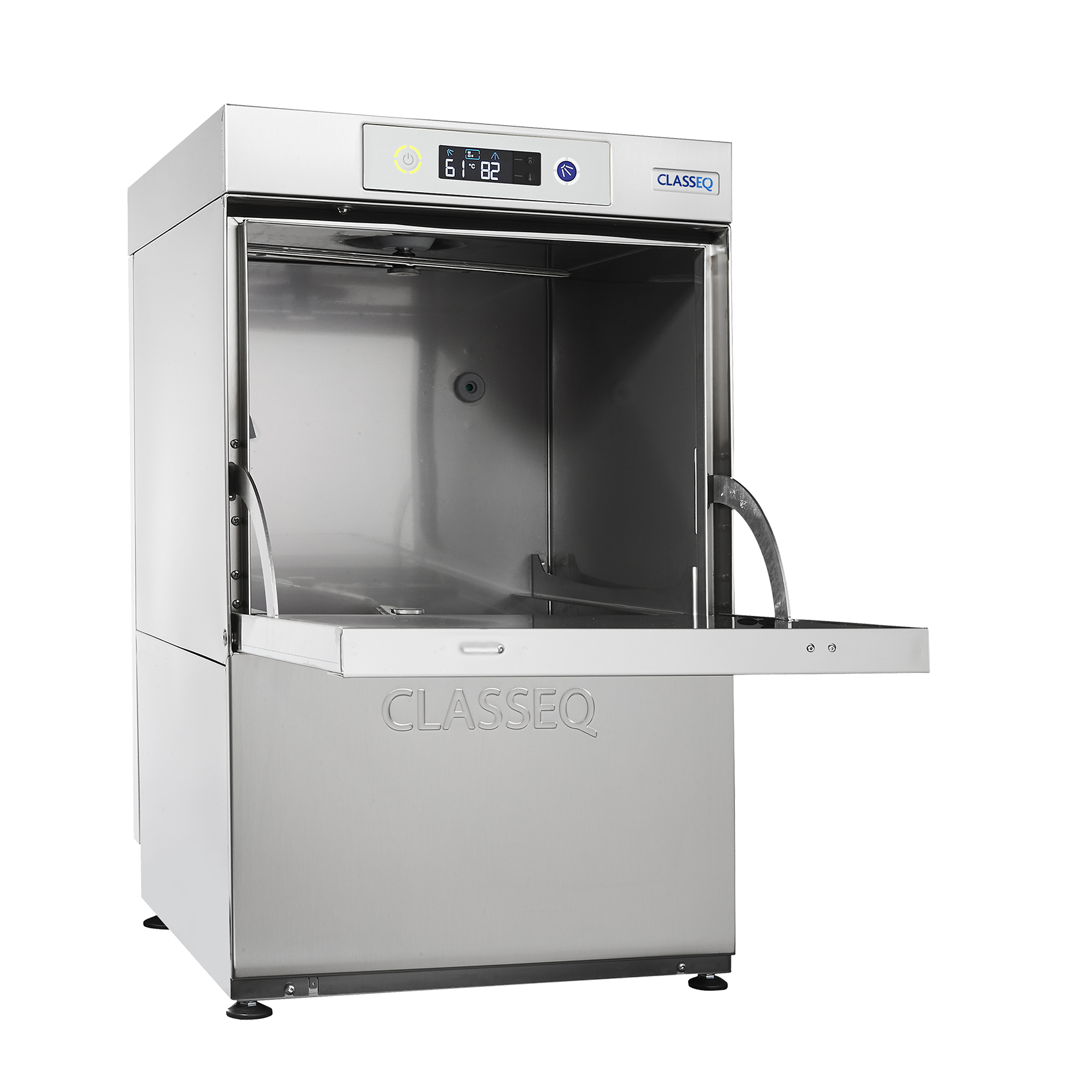

G400
A compact undercounter glasswasher
Compact, front loading and with two wash programmes standard (2 minute) and light (1.5 minute) cycles for effortless, consistently clean results, the G400 is the perfect glasswasher for where space is limited. The G400 is an easy to operate glasswasher with a 400 x 400mm basket that holds 16 pint-sized glasses. With its two wash cycles, this machine is capable of cleaning up to 640-pint glasses per hour.
The digital LCD display accurately shows the temperature of the wash tank and rinse boiler, re-assuring the operator that it is up to temperature and fully sanitising during the wash cycle.
Key Features
Dimensions: 450 mm x 760 mm x 517 mm Basket Size: 400 x 400 mm Glasses per rack : 16 Theoretical max racks per hour: 40 Glasses per hour: 640How to Buy
Complete the form and we will connect you with a reseller.
Product Downloads
Login or Register to download a brochure, manuals or technical documentation.
G400 - Technical Data at a Glance
A standard Glasswasher with a 400mm x 400mm basket size. Wash up to 640 pint glasses an hour.
Technical Details - G400
Full technical specification of the G400. Our glossary can help you understand all the technical terms. Still confused, just complete the contact form and one our team will be in touch.
Dimensions
Width:
450 mm
Height:
760 mm
Depth:
517 mm
Door Depth - Open:
865 mm

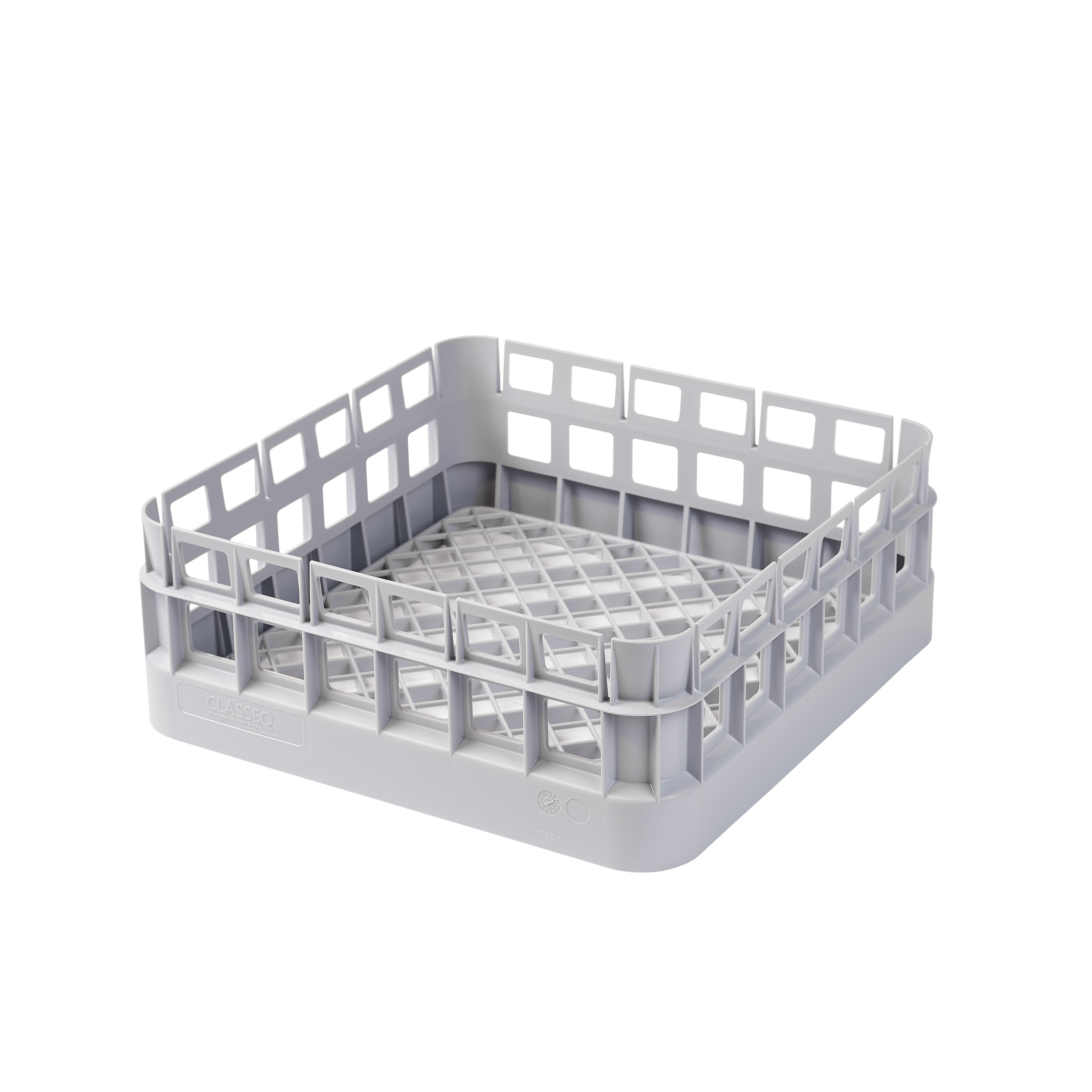

Basket Size:
400 x 400 mm
Rack Size:
400 x 400 mm
Clear entry height:
311 mm
Performance
Theoretical max racks per hour:
40
Glasses per rack :
16
Number of wash programmes:
2
Duration of wash programmes:
1.5 & 2 minutes
Glasses per hour:
640
Wash tank element:
2 kW
Rinse tank element:
2.6 kW
Wash tank capacity:
9.77 Litres
Rinse tank capacity:
6.5 Litres
Rinse water consumption at 3 bar:
3 Litres
Wash tank temperature:
55 °C
Rinse tank temperature:
70 °C
Wash pump power:
0.25 kW
Hydraulic Specifications
Water supply connection:
G3/4" (3/4"Bsp)
Minimum allowed supply water pressure:
2-4 bar
Required water flow rate:
11L/min
Minimum incoming water temperature:
4 °C
Maximum incoming water temperature:
55°C
Gravity drain height (from machine base):
40mm
Pumped drain height (from machine base):
540mm
Drain Size:
o40mm
Electrical Specifications
Standard Configuration
Amps Required:
13A (1 phase)
Total connected load:
2.85kW
Optional Configuration
Amps Required:
13A (3 phase)
Total Connected Load:
6.58kW
Optional Configuration
Amps Required:
30A (1 phase)
Total Connected Load:
6.58kW
Additional Info
Empty Weight:
32.kgs
Packed weight:
43.2kgs
Fully loaded weight:
43.5kgs
Service:
Installation
Full suite of product information including product brochures, user manuals, engineer's manuals and more are available from our download centre.
Download further product information for the G400
Accessories

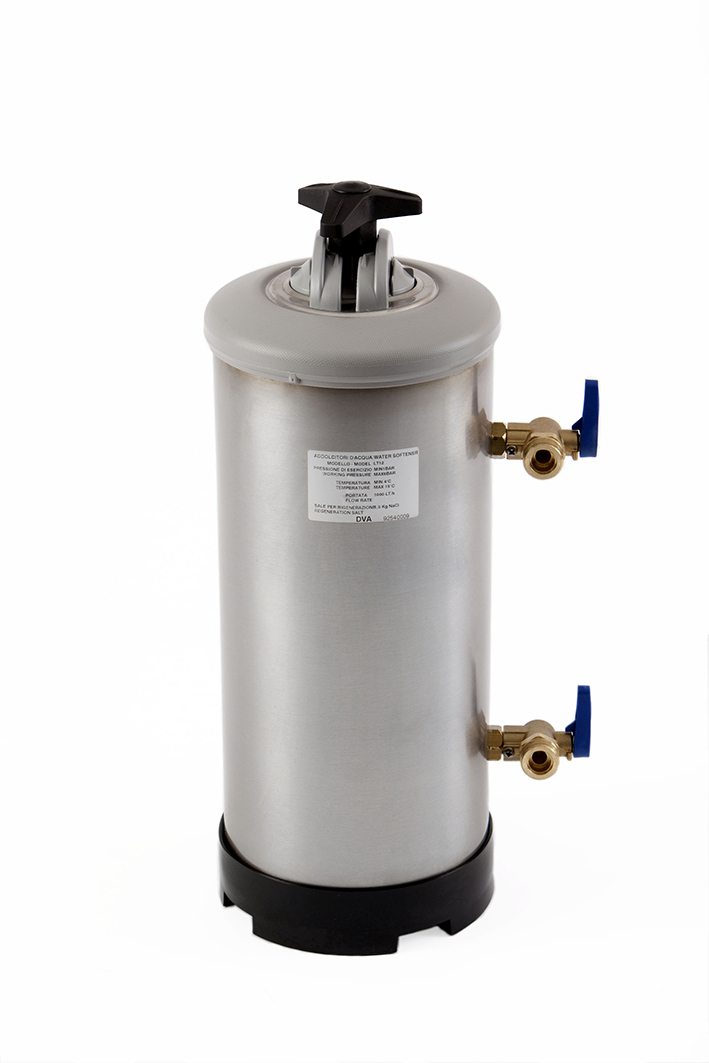

12 Litre Manual Softener
WS12-SK
400 Stainless Steel Stand
SS400-D
400 Steel Coated Stand
BWS400
