Simple
- Easy to use, simple to clean, excellent wash results.
- Simple two-button control.
- LCD displays wash & rinse tank temperatures plus wash cycle information.
- Colour coded display.
- Chemical Pump.
Robust
- Temperature Interlock guaranteeing correct rinse temperature.
- Two wash programmes - standard (2 minutes) & light (1.5 minutes).
- Doubled-skinned door.
- Optional Drain Pump.
Classeq
- Made in Britain.
- Next working day delivery available.*
- Supported by a nationwide network of technicians.

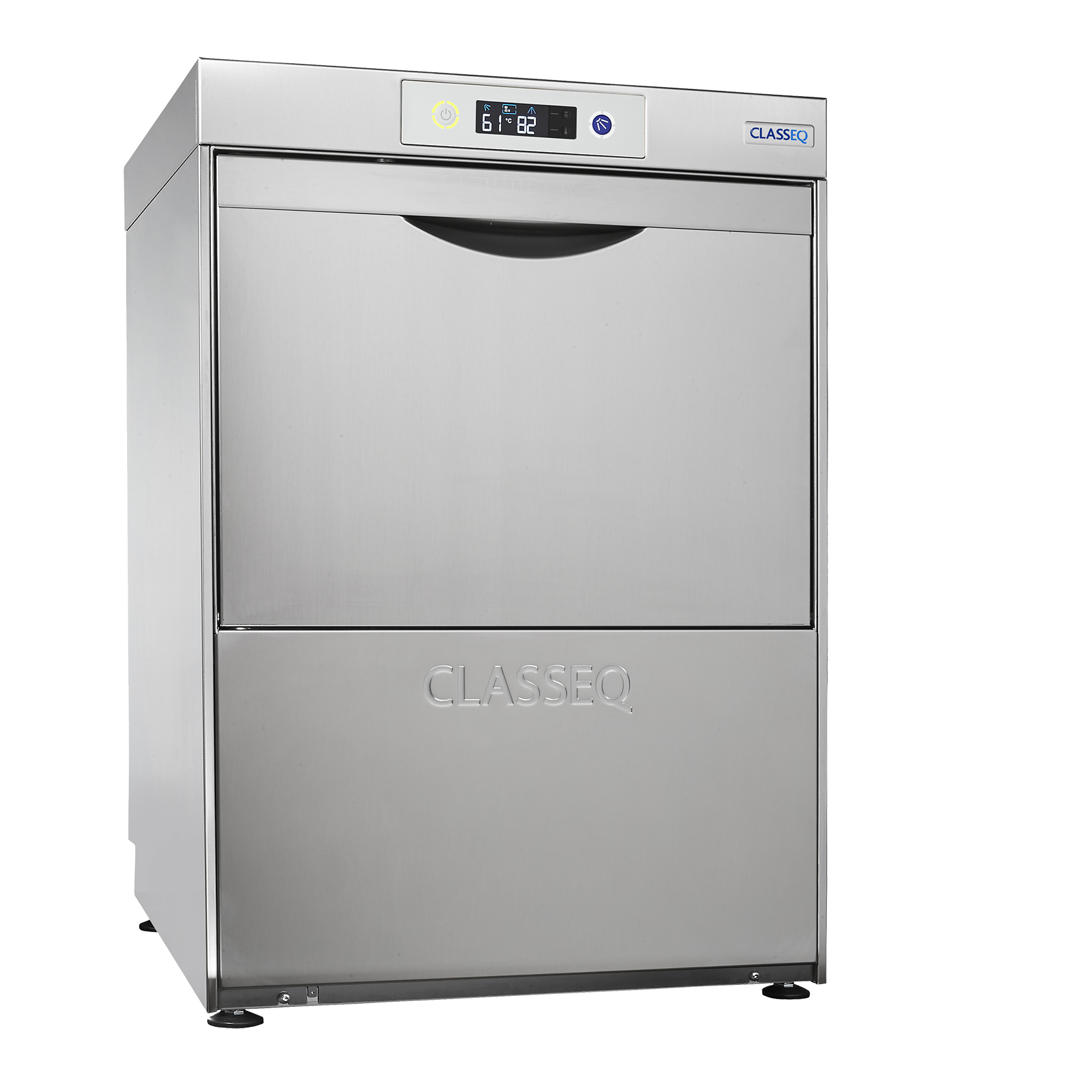

G500DUO
A compact undercounter glasswasher

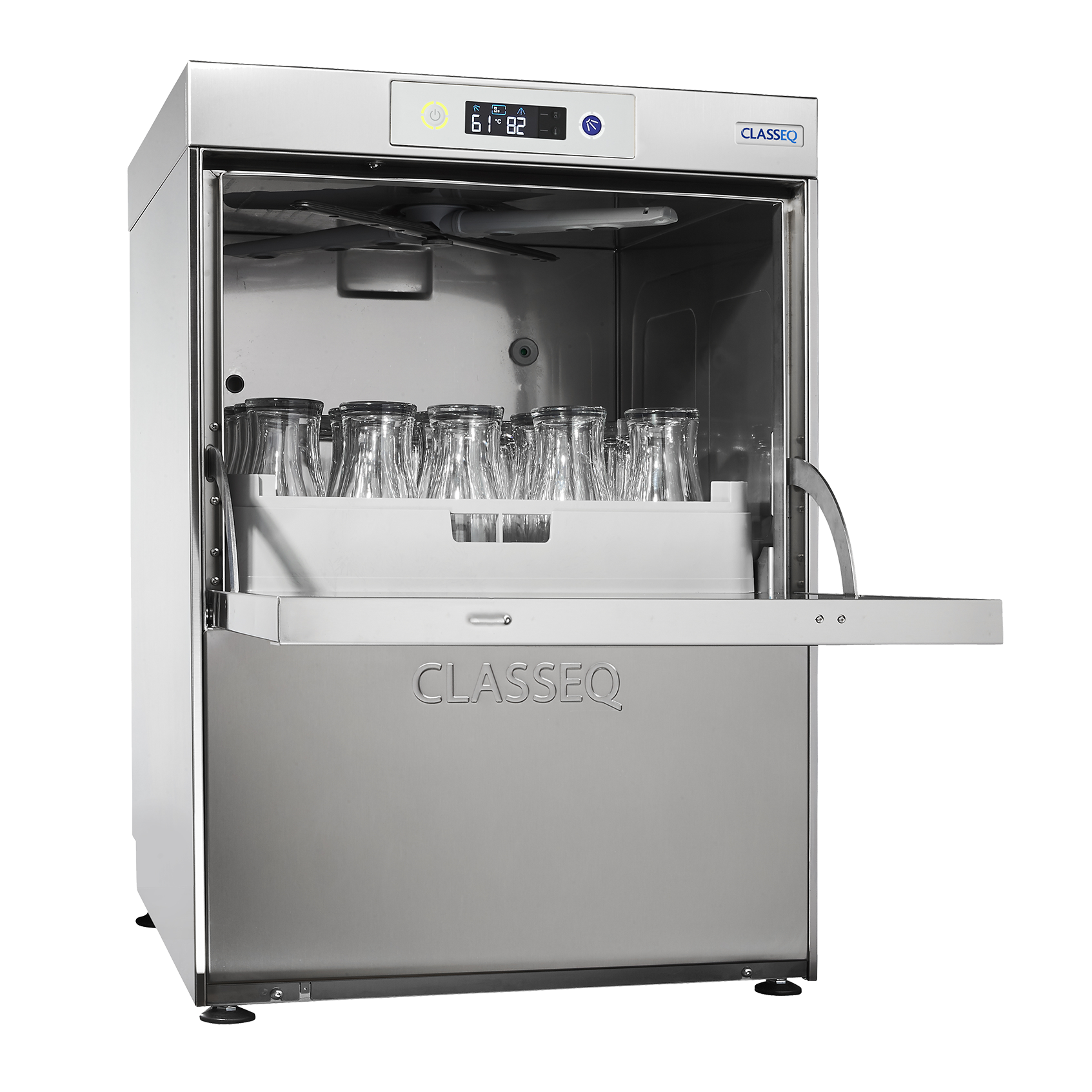

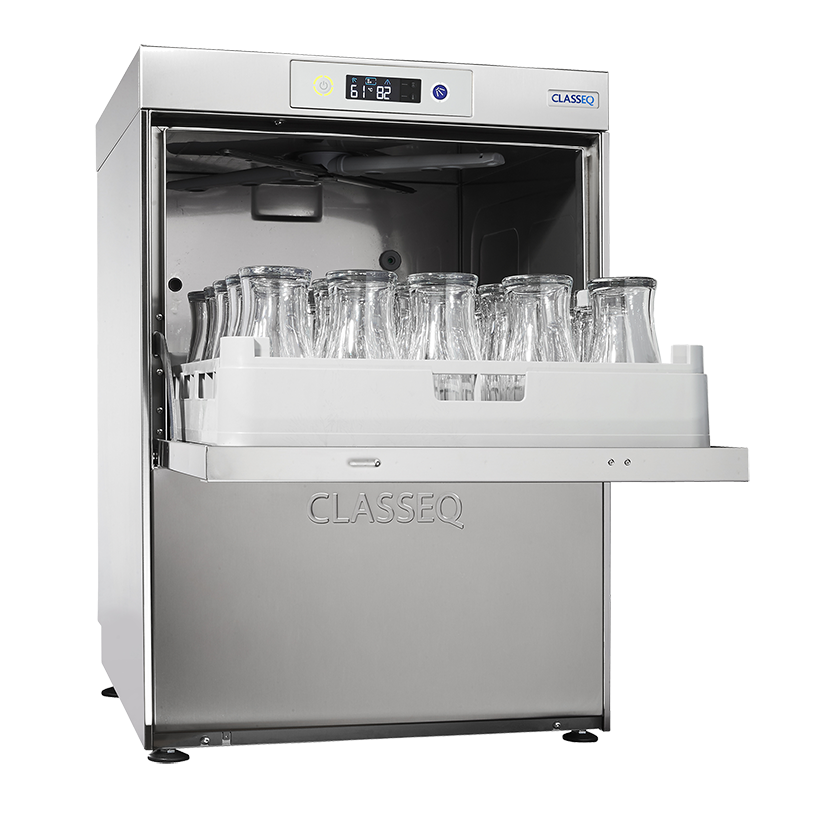

Front loading commercial glasswasher with two wash cycles – standard (two minutes) and light (1.5 minutes) and simple two-button controls for effortless, consistently clean results. The G500DUO is an easy to operate glasswasher with a 500 x 500mm basket that holds 25 pint-sized glasses.
Digital LCD display to ensure the operator that the wash is being carried out thoroughly. This machine is capable of cleaning up to 1,000 glasses per hour.
The G500DUOWS adds an integral water softener.
Key Features
Dimensions: 570 mm x 830 mm x 605 mm Basket Size: 500 x 500 mm Glasses per rack : 25 Theoretical max racks per hour: 40 Glasses per hour: 1000How to Buy
Complete the form and we will connect you with a reseller.
Product Downloads
Login or Register to download a brochure, manuals or technical documentation.
G500DUO - Technical Data at a Glance
A DUO Glasswasher with a 500mm x 500mm basket size. Wash up to 1,000 pint glasses an hour.
Technical Details - G500DUO & G500DUOWS
Full technical specification of the G500DUO & G500DUOWS. Our glossary can help you understand all the technical terms. Still confused, just complete the contact form and one our team will be in touch.
Dimensions
Width:
570 mm
Height:
830 mm
Depth:
605 mm
Door Depth - Open:
987 mm
Basket Size:
500 x 500 mm
Rack Size:
500 x 500 mm
Clear entry height:
343 mm
Performance
Theoretical max racks per hour:
40
Glasses per rack :
25
Number of wash programmes:
2
Duration of wash programmes:
1.5 & 2 minutes
Glasses per hour:
1000
Wash tank element:
2 kW
Rinse tank element:
6 kW
Wash tank capacity:
14.33 Litres
Rinse tank capacity:
7.5 Litres
Rinse water consumption at 3 bar:
3 Litres
Wash tank temperature:
55 °C
Rinse tank temperature:
70 °C
Wash pump power:
0.58 kW
Rinse pump power:
0.19 kW
Water softener:
optional
Hydraulic Specifications
Water supply connection:
G3/4" (3/4"Bsp)
Minimum allowed supply water pressure:
0.5 bar (DUO) / 2-4 bar (DUOWS)
Required water flow rate:
11L/min (DUO) // 11L/min (DUOWS)
Minimum incoming water temperature:
4 °C
Maximum incoming water temperature:
55°C
Gravity drain height (from machine base):
40mm
Pumped drain height (from machine base):
600mm
Drain Size:
o40mm
Electrical Specifications
Standard Configuration
Amps Required:
30A (1 phase)
Total connected load:
6.58kW
Optional Configuration
Amps Required:
13A (3 phase)
Total Connected Load:
6.58kW
Optional Configuration
Amps Required:
12A (1 phase)
Total Connected Load:
2.58kW
Additional Info
Empty Weight:
54.7kgs
Packed weight:
66.6kgs (DUO) / 68.7kgs (DUOWS)
Fully loaded weight:
75.2kgs
Service:
Installation
Accessories

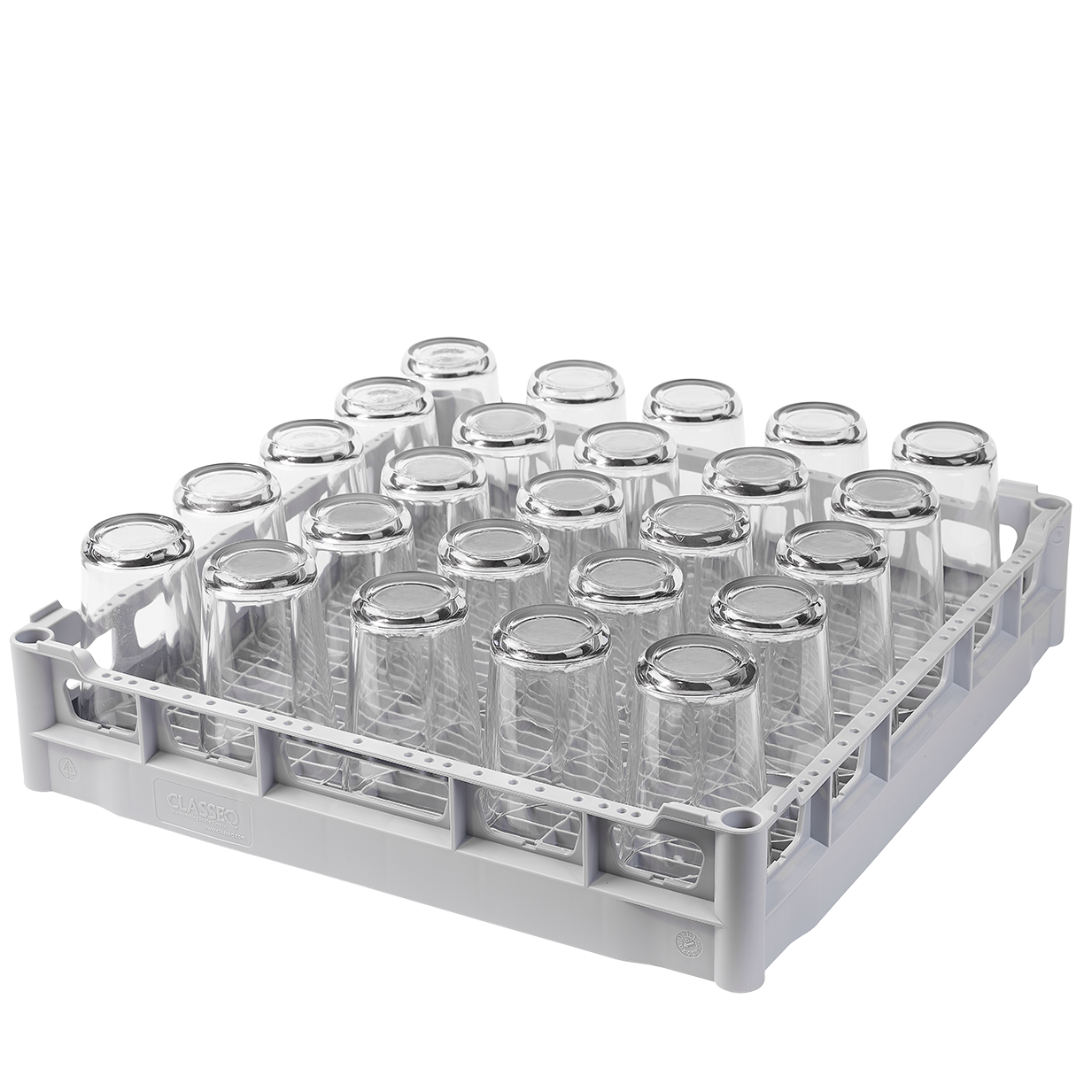

Glass/Cup Basket - 500mm x 500mm
30001197
G500 Tall Glass Plastic Basket
30013206
500 Stainless Steel Stand
SS500-D
500 Steel Coated Stand
BWS500
16 Litre Manual Softener
WS16-SK
Automatic Softener
WS-AUTO
Automatic Softener - Hot
WS-HC10
